VA-30
Portable Butane Stove

Portable Butane Stove

  • High Power 12,000 BTU/hr
  • Heavy Duty Wind Breaker
  • Magnetic Locking System for easy connection and safety
  • Stainless Steel Drip Pan
  • Carrying Case for easy storage and transportation

Stainless Steel Windbreaker

Stainless steel windbreaker protects the flame from wind and air conditioning, making it the perfect stove for camping and indoor/outdoor commercial use.

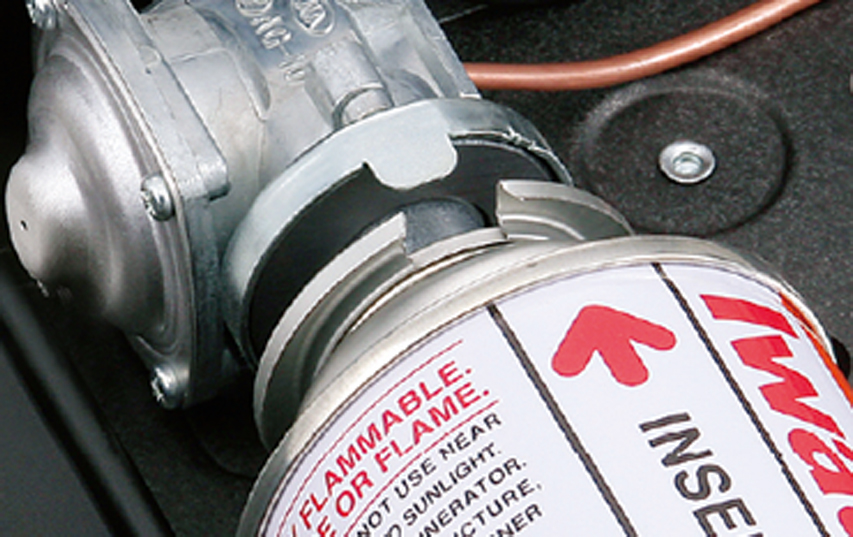

Magnetic Locking System

This lwatani System feature replaces locking levers. Simply push the fuel can onto the magnet and it locks in safely making it virtually impossible to load fuel can incorrectly.

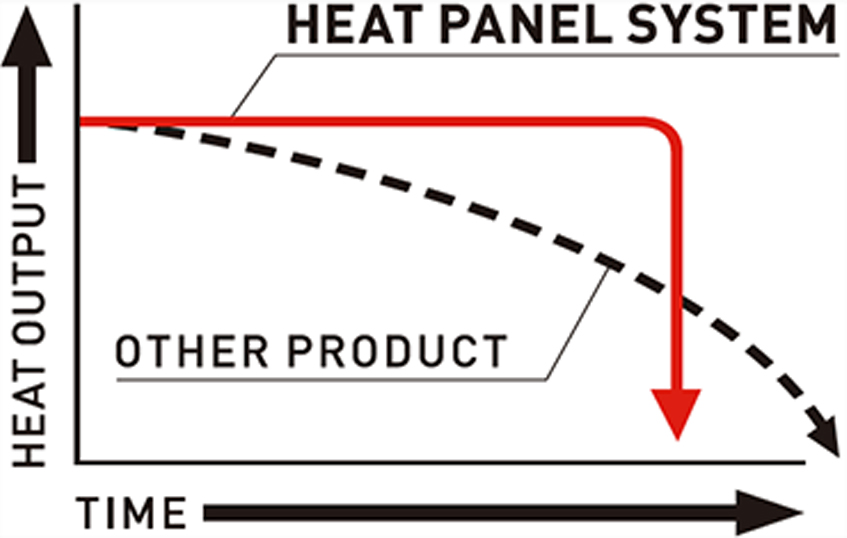

Heat Panel System

lwatani System maintains constant pressure as fuel is being consumed, providing the maximum and consistent output for the life of entire fuel canister. It also allows the stove to utilize the entire can of butane leaving no residual fuel, assuring greater economy and safety.

Safety Features

1. Pressure Sensing Device

Advanced regulator design shuts off the flow of butane which extinguishes the flame if the pressure in the canister rises to unsafe levels. The device activates at 60psi [0.4Mpa] to 90 psi [0.6Mpa].

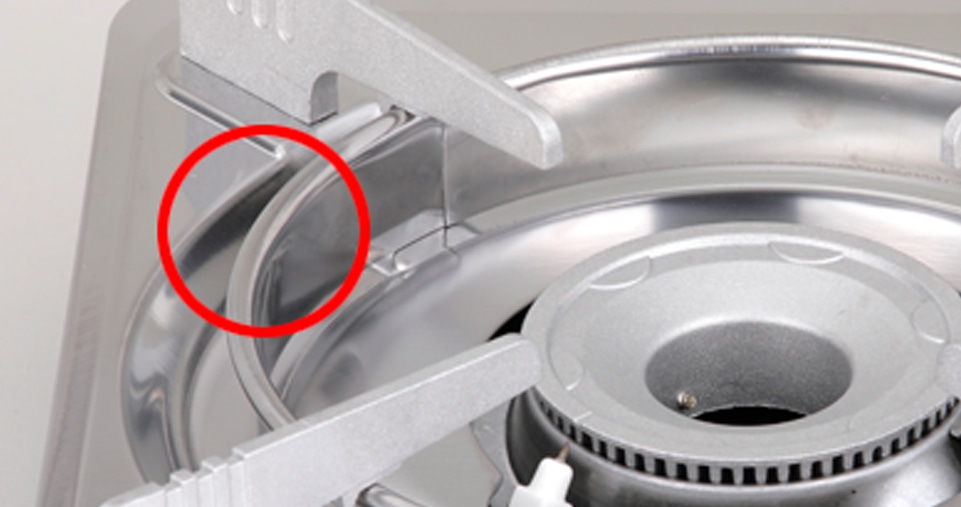

2. Canister Setting Safety Distance

The canister cannot be attached if the stove is not in the off position. This feature protects against unintentional gas escaping through the burner without ignition.

3. Pressurized Receiving Guide

Two sized 0-rings are built into the receiving guide of the regulator. This double protection feature helps give the canister and regulator an airtight seal.

4. Inverted Drip Pan Prevention Device

This feature protects the use of the stove by not allowing the drip pan to set level when the drip pan is inverted.

Specifications

Model Name IWATANI CASSETTE FEU® Portable Butane Stove
Model VA-30
Product Size [W x L x H] 13.0"/333mm x 11.0"/280mm x 3.8"/97mm
Product Weight 3.1lbs/1.4kg
Ignition Piezoelectric Ignition
Output 12,000 BTU/hr
Burning Time Approx. 70 minutes(at max. power)
Package Size [W x L x H] 14.0"/355mm x 12.4"/316mm x 4.1"/104mm
Package Weight 4.2lbs/1.9kg
Units/Case 6
Case size [W x L x H] 26.4"/671mm x 14.4"/367mm x 13.2"/355mm
Case Weight 28.7lbs/13.0kg
UPC 022918 025616
