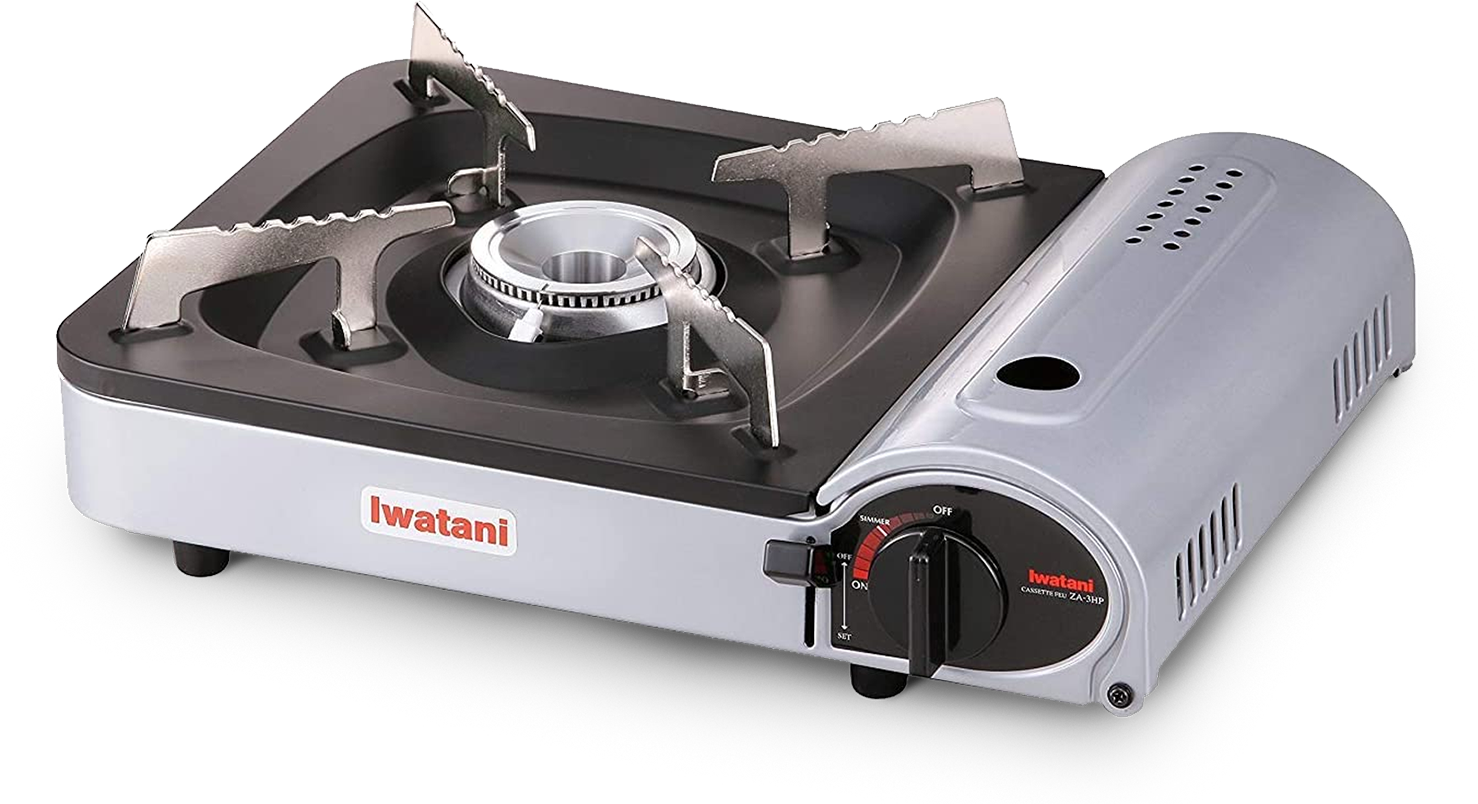

ZA-3HP

Portable Butane Stove

  • 12,000 BTU/hr
  • Automatic Safety Shut-Off System with reset lever
  • Piezoelectric ignition
  • Iwatani designed Heat Panel System
  • Advanced Japanese regulator design Carrying Case

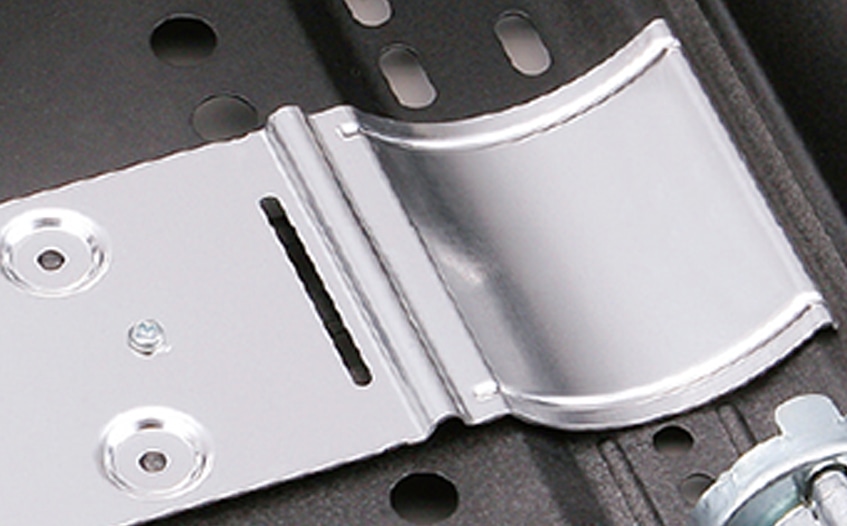

Heat Panel System

lwatani System maintains constant pressure as fuel is being consumed, providing the maximum and consistent output for the life of entire fuel canister. It also allows the stove to utilize the entire can of butane leaving no residual fuel, assuring greater economy and safety.

Safety Features

1. Pressure Sensing Device

Advanced regulator design shuts off the flow of butane which extinguishes the flame if the pressure in the canister rises to unsafe levels. The device activates at 60psi [0.4Mpa] to 90 psi [0.6Mpa].

2. Canister Setting Safety Distance

The canister cannot be attached if the stove is not in the off position. This feature protects against unintentional gas escaping through the burner without ignition.

3. Pressurized Receiving Guide

Two sized 0-rings are built into the receiving guide of the regulator. This double protection feature helps give the canister and regulator an airtight seal.

4. Inverted Drip Pan Prevention Device

This feature protects the use of the stove by not allowing the drip pan to set level when the drip pan is inverted.

Specifications

Model Name IWATANI CASSETTE FEU® Portable Butane Stove
Model VA-30
Product Size [W x L x H] 13.0"/333mm x 11.0"/280mm x 3.8"/97mm
Product Weight 3.1lbs/1.4kg
Ignition Piezoelectric Ignition
Output 12,000 BTU/hr
Burning Time Approx. 70 minutes(at max. power)
Package Size [W x L x H] 14.0"/355mm x 12.4"/316mm x 4.1"/104mm
Package Weight 4.2lbs/1.9kg
Units/Case 6
Case size [W x L x H] 26.4"/671mm x 14.4"/367mm x 13.2"/355mm
Case Weight 28.7lbs/13.0kg
UPC 022918 025616
